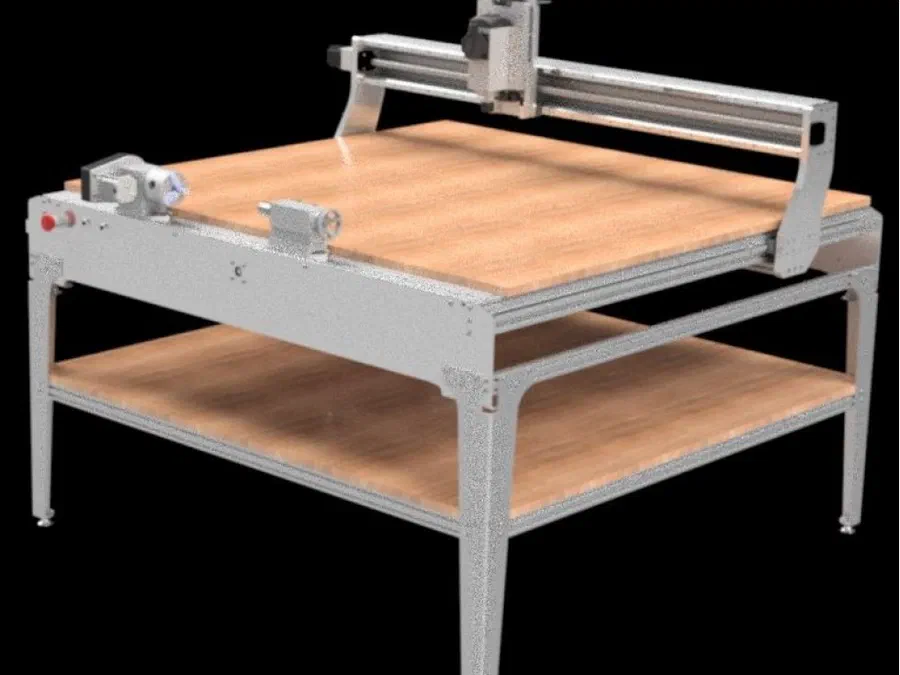

CNC4Newbie PRO4848BL

About the Machine

The PRO4848BL has a 50 x 50 x 6 in work area (61 x 64 x 54 in footprint using a 3/4in MDF wasteboard), built for precision with ball screws on every axis: 20mm ball screws on X/Y (dual on Y) and a 12mm ball screw on Z, 15mm square linear bearings, and 3/4in 6061-T6 aluminum X sides with a 3x5in C-beam. It ships with an integrated GeckoDrive G540 controller.

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

If this machine's spindle cannot reach the listed speed, run the spindle at its maximum and control the cut with feed rate. For 65mm trim routers, the DeWalt DW611 dial maps to: 1 = 16,000; 2 = 18,200; 3 = 20,400; 4 = 22,600; 5 = 24,800; 6 = 27,000 RPM.

The PRO4848BL ships without a spindle, so its top RPM depends on whatever unit you mount (not included; mount options from 65mm up to 89mm), check that unit’s own rating plate against the chart rather than assuming a number. Its 20mm ball screws on X/Y (dual on Y) and 12mm ball screw on Z with heavy 6061-T6 aluminum X sides make it CNC4Newbie’s most precision-focused kit at this size, rated for +/-0.002in repeatability. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, but that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. With a suitably powerful spindle mounted, the PRO4848BL gets close to that bar, but still build up depth per pass gradually. Push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM. With the bit maker’s 0.025mm per tooth (0.0010 in): 16,000 x 0.025 x 2 = 800 mm/min (31 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on the CNC4Newbie PRO4848BL. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
