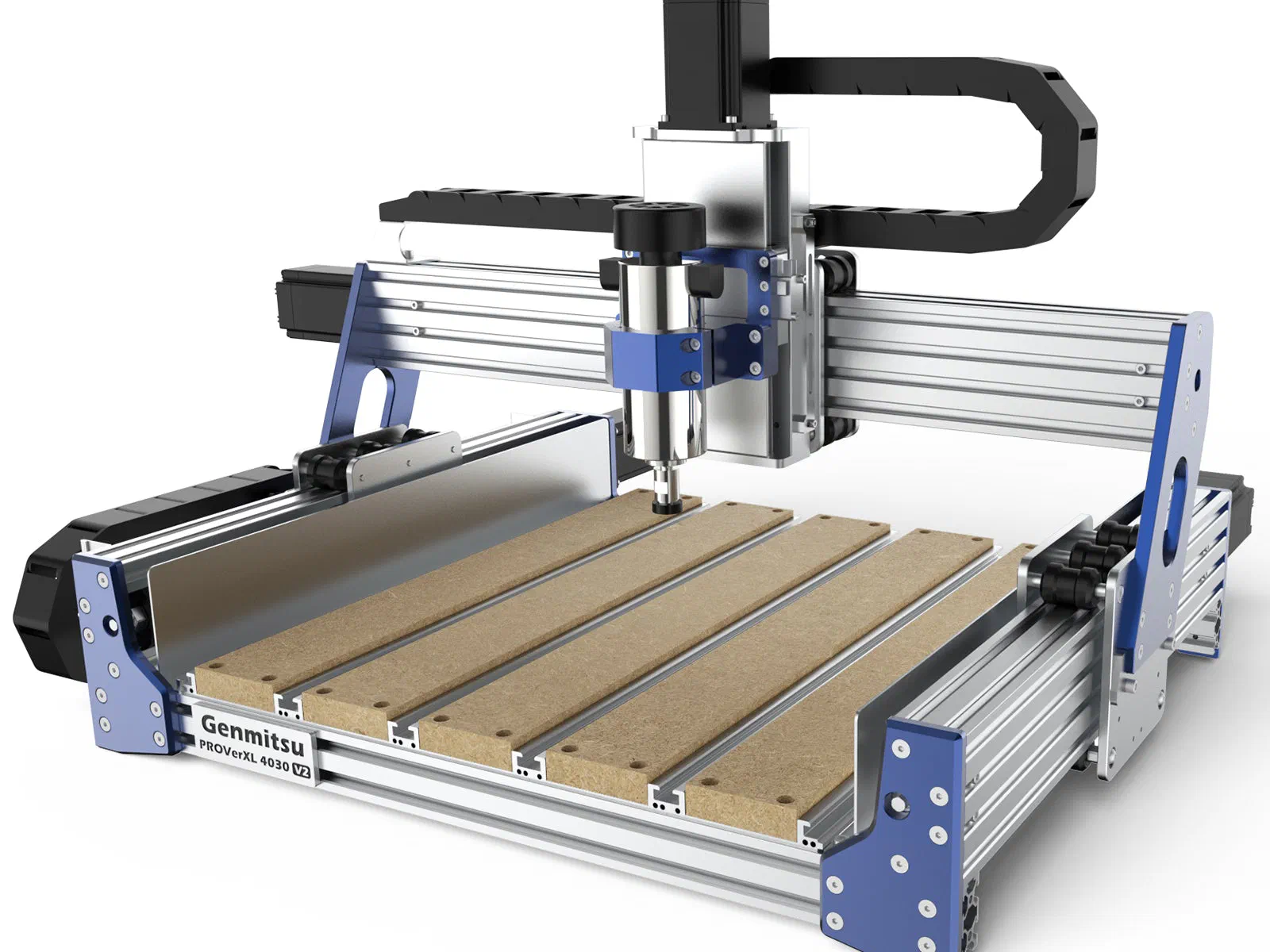

SainSmart Genmitsu Genmitsu PROVerXL 4030 V2

About the Machine

The Genmitsu PROVerXL 4030 V2 has a 400 x 300 x 110 mm working area, a 400W spindle (10,000 RPM), and closed-loop NEMA23 stepper motors (76mm) on a 1204 ball screw drive.

Cut Settings on this Machine

Every cut starts with one formula: Feed Rate = Spindle Speed (RPM) x Chip Load x Number of Cutting Edges (flutes). Chip load is the thickness of material each cutting edge removes in one revolution of the bit. This number comes from the manufacturer of the bit, which publishes a chip-load chart for each bit diameter and material. Look up your exact bit and material, start from the middle of the published range, and you have the third number in the formula. The chart below shows the recommended spindle speed for each material and bit type.

If this machine's spindle cannot reach the listed speed, run the spindle at its maximum and control the cut with feed rate. For 65mm trim routers, the DeWalt DW611 dial maps to: 1 = 16,000; 2 = 18,200; 3 = 20,400; 4 = 22,600; 5 = 24,800; 6 = 27,000 RPM.

The PROVerXL 4030 V2’s 400W spindle tops out at 10,000 RPM, below most of the chart. Leave it near the top for everything and control the cut with feed rate instead. If acrylic starts to melt, speed the feed up rather than slowing the spindle, and skip aluminum on this spindle except for light engraving. Depth per pass is where the machine itself matters. A truly rigid machine with a powerful spindle can cut as deep as the bit is wide in a single pass, and that takes real spindle torque, a drive train and clamps that hold firm, a gantry that will not flex, and enough mass to soak up vibration. Closed-loop NEMA23 steppers on a 1204 ball screw drive give this machine more of that rigidity than SainSmart’s lead-screw kits, so you can push moderately deeper passes than a small desktop router while still watching for chatter. Push too deep and the bit deflects and chatters, leaving scalloped edges, or it rubs instead of cutting and burns the material. The fastest way to dial in a cut is to see what has already worked for other people.

Worked example for feed rate: 1/8in (3.175mm) two-flute solid carbide end mill in hard wood. The chart says 16,000 RPM. With the bit maker’s 0.025mm per tooth (0.0010 in): 16,000 x 0.025 x 2 = 800 mm/min (31 in/min) feed. For depth per pass, start shallow and check Community Cut Settings in Easel for what works on the SainSmart Genmitsu Genmitsu PROVerXL 4030 V2. If the cut sounds strained, reduce the depth, not the feed. Slowing the feed below the chip load makes the bit rub instead of cut.

Community Cut Settings shows the spindle speed, feed rate, and depth per pass other makers actually run for your machine, material, and bit.
